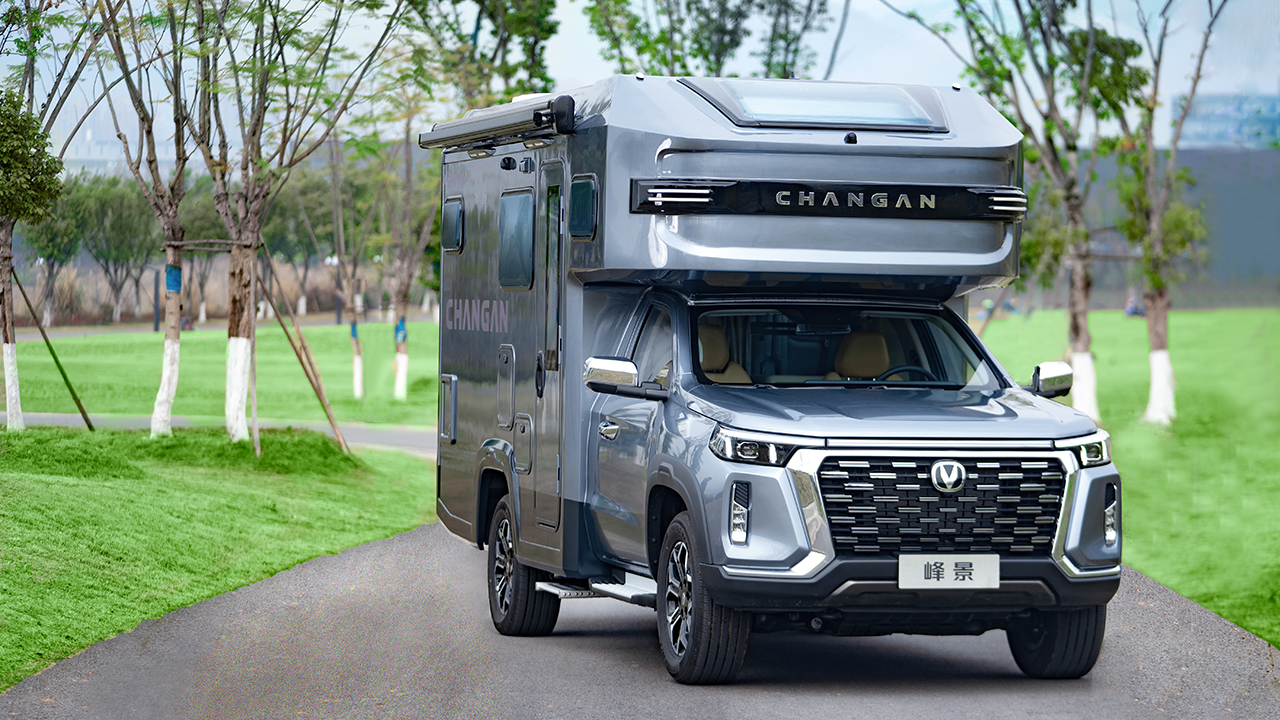

| Chang'an Fengjing · Blue Whale Explorer RV | ||||||
| Basic parameters | ||||||
| Length | 5995 | Emission standard | National VI | |||
| Width | 2170 | Engine type | D20T GDI Double Vortex Tube Supercharged Direct Injection Engine D20T GDI | |||
| Width | 2880 | Displacement (L) | 2.0T | |||
| Preparation mass (kg) | 3087 | Fuel | Gasoline | |||
| Seats | 4 people (longitudinal bed)/6 people (seating) | Fuel tank volume (L) | 80 | |||
| Bed | Forehead bed+large longitudinal bed/card seat bed | Maximum power（kW/rpm) | 171/5000-5500 | |||
| Wheelbase | 3430mm | Maximum engine torque（ N·m/rpm） | 390/1900-3300 | |||
| Track width front/rear | 1610/1710 | Transmission | ZF 8AT | |||
| Ground clearance | 215 | Four wheel drive system | Front timely four-wheel drive | |||
| Approach angle/departure | 28°/17° | Differential Lock | Central differential lock + rear axle differential lock | |||
| RV body structure | Integrated cage shaped high torsion resistant body | Driving area air conditioning | Automatic air conditioning+rear air outlet | |||
| Chassis system configuration | ||||||
| Intelligent driving and safety configuration | Standard configuration | High configuration | ||||
| Chassis system | Dedicated chassis | Chang'an Automobile RV Special Chassis | ● | ● | ||
| chassis structure | Non load bearing type | ● | ● | |||
| suspension | Dual wishbone independent suspension+fully gradient steel plate spring non independent suspension | ● | ● | |||
| Power-assisted steering | Electronic Power Assisted Steering (EPS) Multi mode steering (lightweight, comfortable, and sporty) |
● | ● | |||
| Driving mode | Economy, Standards, Sports, Snow, Off Road (five in total) | ● | ● | |||
| Towing hook status | Front tow hook | ● | ● | |||
| Brake system | Four wheel disc brake | ● | ● | |||
| Parking braking | EPB | ● | ● | |||
| Tire Size | 265/60R18（HT） | ● | ● | |||
| Wheel hub material | Aluminum alloy | ● | ● | |||
| Light combination | LED headlights+LED daytime running lights+LED front position lights | ● | ● | |||
| Automatic Headlamps | Automatic headlights+electrically adjustable headlight angle+delayed headlight off function | ● | ● | |||
| Boneless wiper | Boneless wiper+automatic function | ● | ● | |||
| Exterior mirror | Electric adjustment+defrosting heating function | ● | ● | |||
| Seat | 6-way manual adjustable (up, down, front, back, and backrest) | ● | ● | |||
| Passenger seat | 4-way manual adjustable (front, rear, and backrest) | ● | ● | |||
| AIRBAG | Dual airbags for both driver and passenger seats | ● | ● | |||
| Vehicle anti-theft and rescue | Road rescue | ● | ● | |||
| Anti theft monitoring and tracking | ● | ● | ||||
| ESP | ABS+EBD | ● | ● | |||
| ESC/ESP | ● | ● | ||||
| TCS | ● | ● | ||||
| BA | ● | ● | ||||
| HHC | ● | ● | ||||
| HDC | ● | ● | ||||
| Emergency brake warning system | ● | ● | ||||
| ESC | ● | ● | ||||
| Driving safety system | Engine electronic anti-theft | ● | ● | |||
| TPMS | ● | ● | ||||
| Cruise control | ● | ● | ||||
| Iane departure warning system | ● | ● | ||||
| Keyless entry (front row)&one click start | ● | ● | ||||
| Smart remote control key (remote window control, unlocking, locking) | ● | ● | ||||
| Speed sensitive automatic door locking (left and right cab doors) | ● | ● | ||||
| Collision automatic unlocking function | ● | ● | ||||
| Collision automatic fuel cut-off function | ● | ● | ||||
| Multifunctional steering wheel: sound+music+driving computer information switching+cruise control+Bluetooth phone+voice control | ● | ● | ||||
| Intelligent health air conditioning control system in the driver's cab: single zone automatic air conditioning+dust filter+forest purification system+automatic defogging | ● | ● | ||||
| 12.3-inch color display screen (radio+USB+Bluetooth) | ● | ● | ||||
| Dual screen linkage: cockpit 7.5 inch color LCD screen+12.3 inch high-definition touch entertainment screen (center console screen) | ● | ● | ||||
| Smoke alarm+carbon monoxide alarm | ● | ● | ||||
| Chassis system | Driving safety system | Front 12V power supply | ● | ● | ||
| USB interface | ● | ● | ||||
| ETC | ● | ● | ||||
| Full time 4G online | ● | ● | ||||
| Bi-directional WiFi (in car WiFi hotspot+WiFi connection channel) | ● | ● | ||||
| Online voice: speech recognition+sound source localization+sound reproduction | ● | ● | ||||
| Online navigation: Gaode (GPS+Beidou) | ● | ● | ||||
| 540° panoramic visual driving assistance | ● | ● | ||||
| Rear reversing radar | ● | ● | ||||
| Driving streaming rearview mirror (with driving record) | ● | ● | ||||

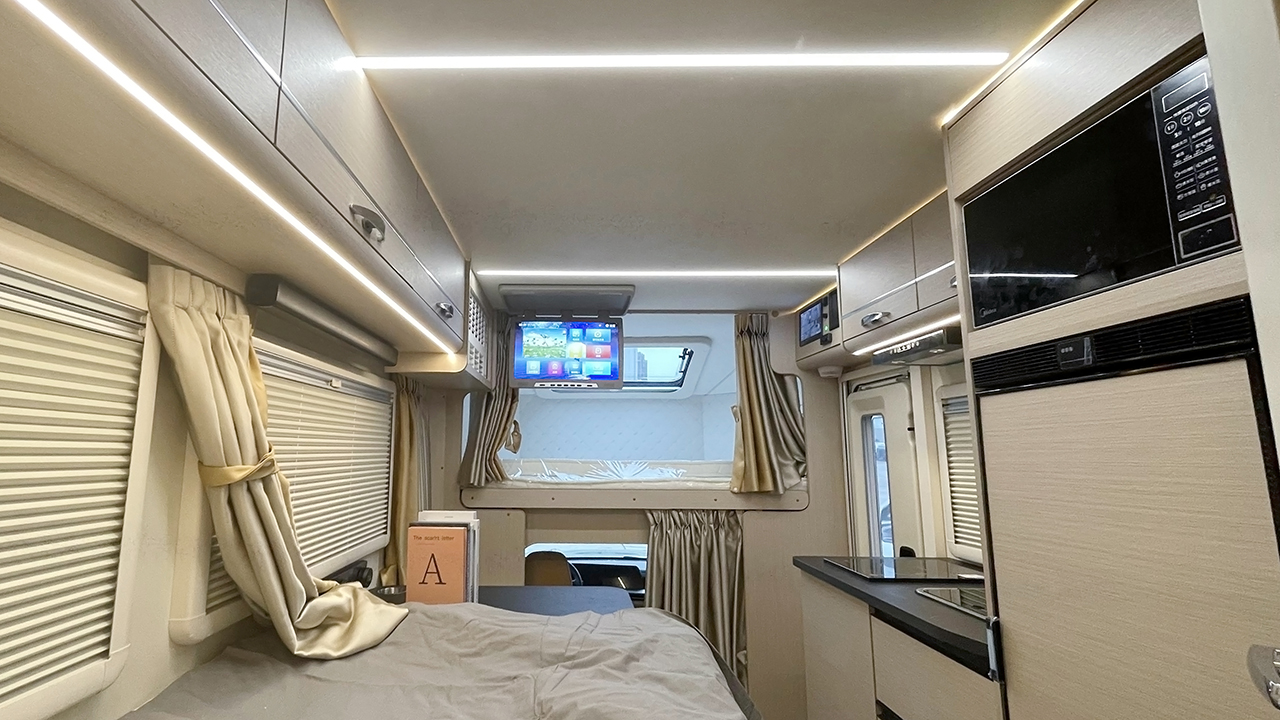

| Living area configuration | ||||||
| Appearance and interior | Standard configuration | High configuration | ||||

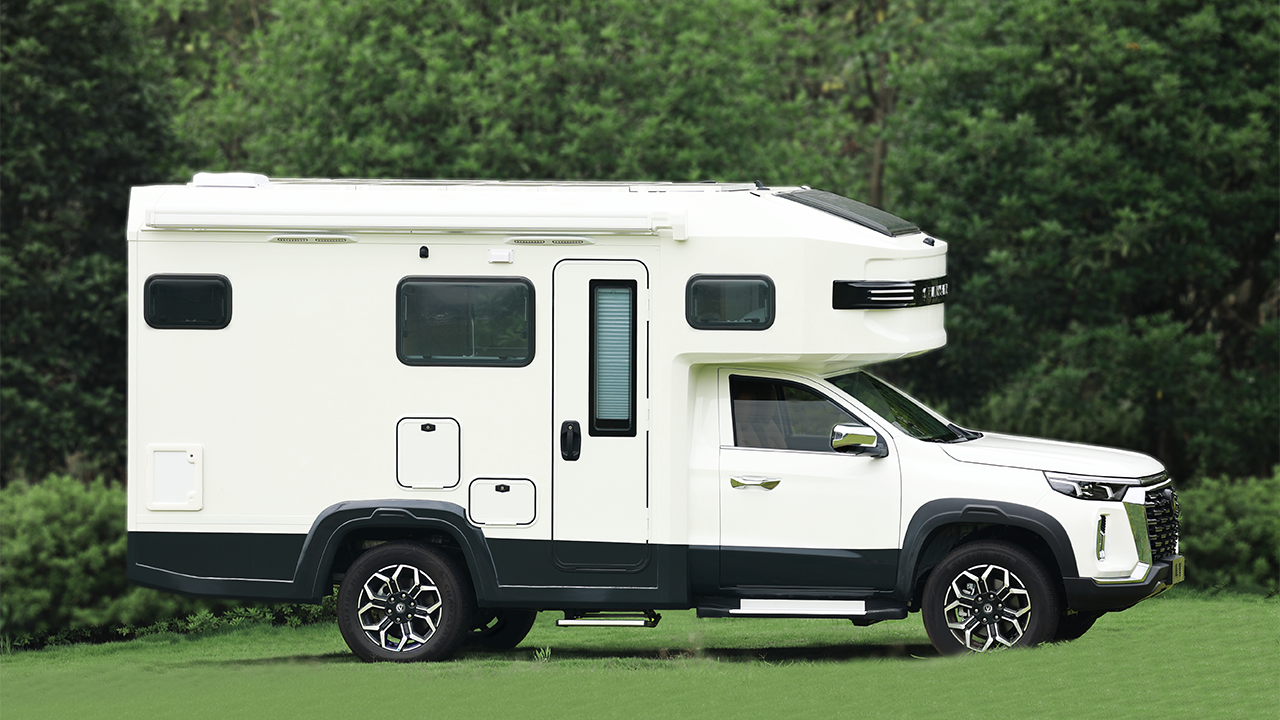

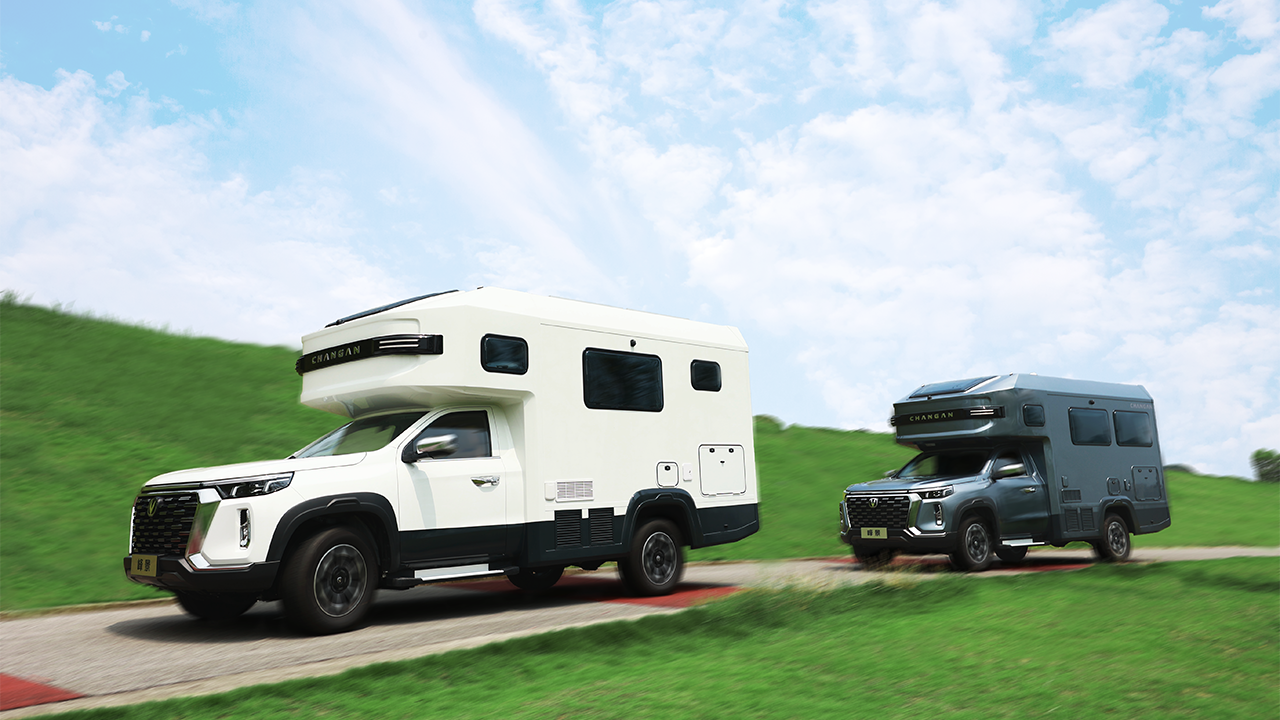

| Appearance color | Bright Moon White | ● | ● | |||

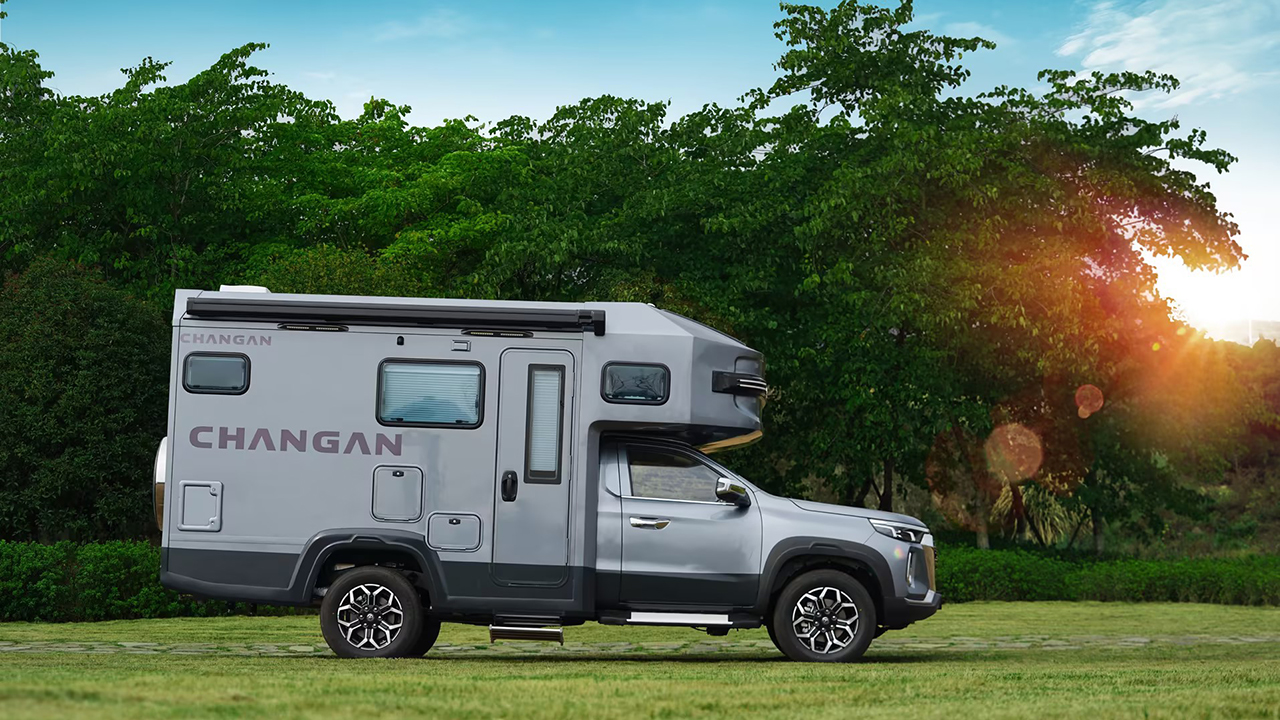

| Star Moon Grey | - | ● | ||||

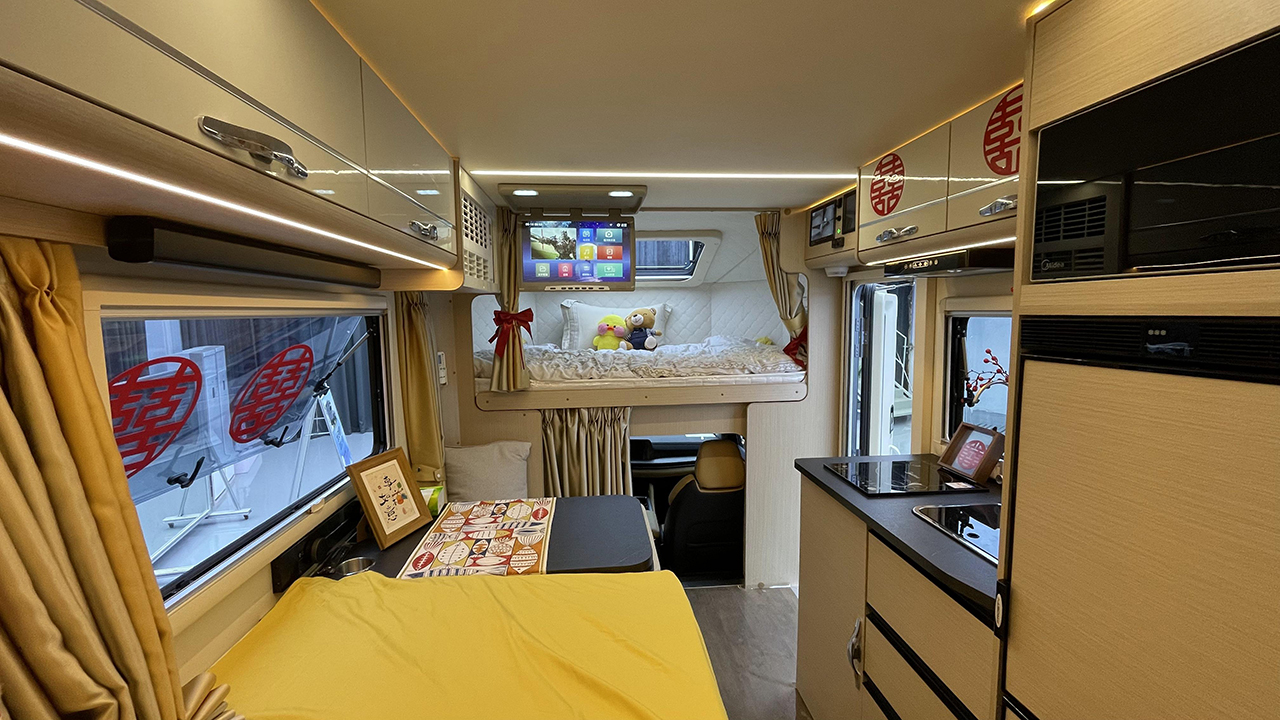

| Interior system | Interior style | Log color | ● | ● | ||

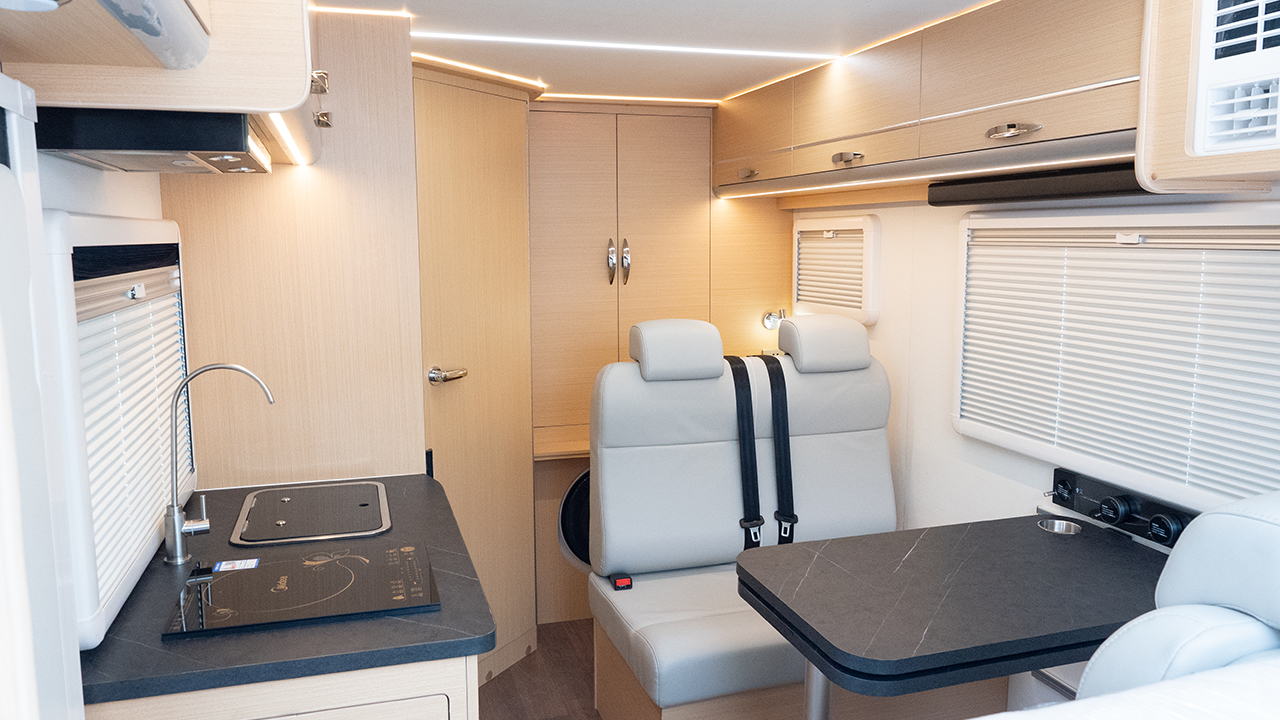

| Guest Rest Area | Pneumatic card seat table | - | ● | |||
| Manual card seat table | ● | - | ||||
| Top hanging cabinet in customer rest area | ● | ● | ||||
| Customer Rest DIY Area (Card Seat Version) | ● | ● | ||||

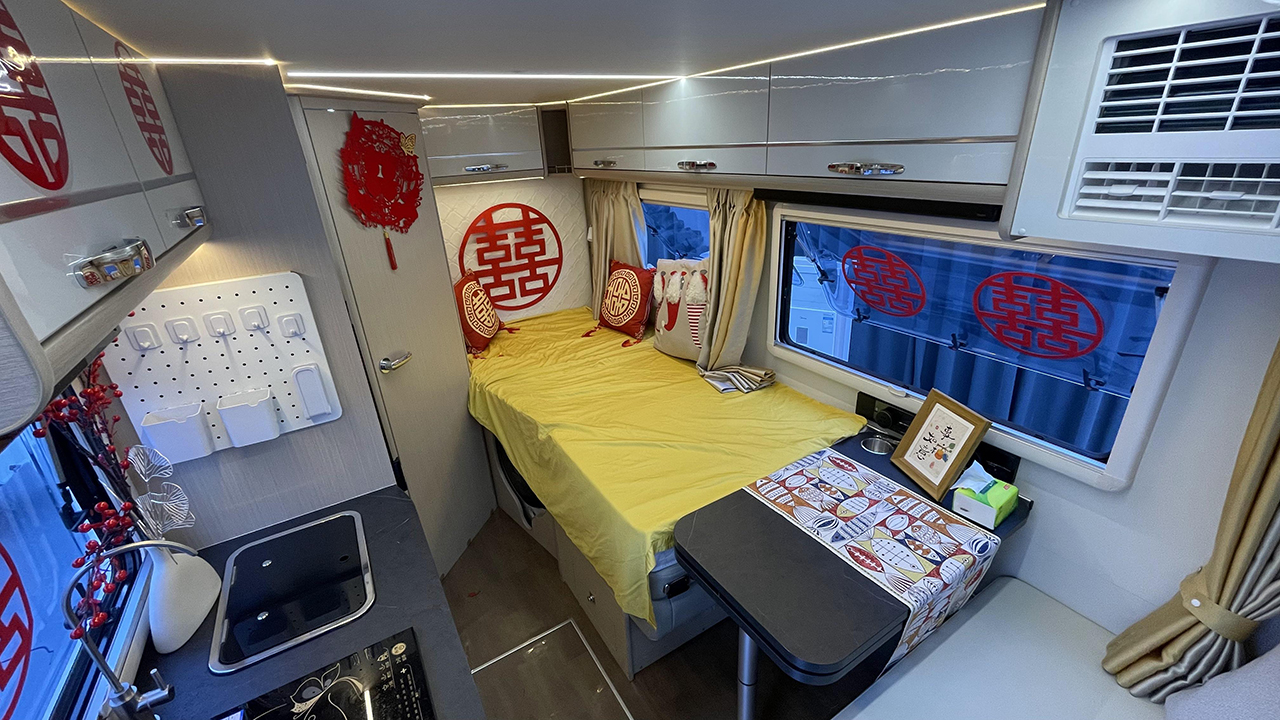

| Guest bedroom area | Left side vertical bed/card seat combination bed | ● | ● | |||

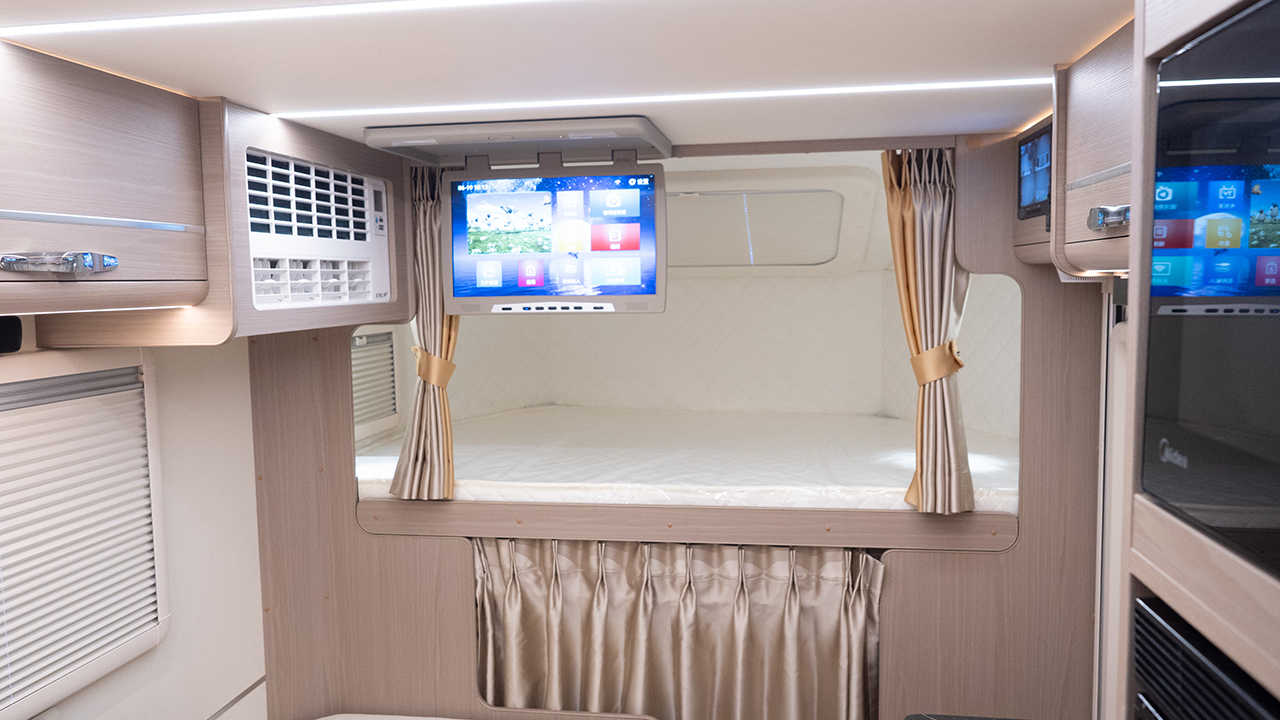

| Forehead bed curtains | - | ● | ||||
| Front cabin curtains | - | ● | ||||
| Customized Sponge Mattresses (Two Pieces) | ● | ● | ||||
| 400L | ● | ● | ||||
| Decoma International | Two point passenger door+hidden screen door | - | ● | |||
| Single point passenger door+hidden screen door | ● | - | ||||
| Entry and exit handrails | ● | ● | ||||
| Passenger door electric step (physical switch) | ● | ● | ||||
| Cab side step | ● | ● | ||||
| Double layer insulation window in the card seat area | ● | ● | ||||
| Double layer insulated windows in the longitudinal bed area/guest lounge DIY area | - | ● | ||||
| Left and right side windows of the forehead | ● | ● | ||||
| Manual parking leg | ● | ● | ||||
| Front forehead decorative light | - | ● | ||||
| Three-dimensional armored rear panel | - | ● | ||||
| Exterior aluminum composite insulation body | - | ● | ||||
| Fiberglass composite insulation body | ● | - | ||||
| Two tone body | - | ● | ||||
| Forehead bed area with shading curtain panoramic RV sunroof | - | ● | ||||
| Manual sunshade | ● | - | ||||
| Electric sunshade | - | ● | ||||
| Comfort and convenience | Standard configuration | High configuration | ||||
| light system | Reading light in the sleeping area | ● | ● | |||
| Interior ambient lighting | ● | ● | ||||
| Exterior sunshade lighting | - | ● | ||||
| Bathroom+cooking desk+passenger area lighting | ● | ● | ||||
| Luggage compartment lighting | ● | ● | ||||
| Power Supply System | 48V200Ah lithium battery (10 degrees) | ② | ● | |||
| 5KW charging and reversing integrated machine (5KW inverter+3.3KW charger) 5KW | ② | ● | ||||
| 48V100Ah lithium battery (5 degrees) | ● | - | ||||
| 3KW charging and reversing integrated machine (3KW inverter+2KW charger) | ● | - | ||||
| New energy national standard charging port | ● | ● | ||||
| Circuit protection device | ● | ● | ||||
| Electric energy supply | solar energy | Solar panel (400W) | ● | - | ||
| Solar panel (800W) | ② | ● | ||||
| Intelligent system | Computer intelligent control (electrical appliances+energy+diagnosis+time+temperature | ● | ● | |||
| Intelligent control of lighting system (atmosphere light+ceiling light+armrest light) | ● | ● | ||||
| Night Entry Lights | ● | ● | ||||
| Four way safety monitoring | - | ● | ||||
| Heating and hot water system | 5000W diesel heater | ● | ● | |||
| Heating air and water system | ● | ● | ||||
| Living area air conditioning | Split type air conditioning for RVs (supports use during driving) | ● | ● | |||
| Audio and video entertainment system | Online car brand radio station | ● | ● | |||
| 22 inch ceiling mounted TV+branded speaker | - | ● | ||||
| Clothing cleaning system | 3kg washing machine | ① | ● | |||
| Toilet ventilation system | Bidirectional ventilation fan | ● | ● | |||
| Toilet heating system | ① | ● | ||||
| Kitchen system | Built in kitchen | 2200W electromagnetic furnace | ● | ● | ||
| Extractor | - | ● | ||||
| Covered sink | ● | ● | ||||
| Expand Kitchen Slabs | - | ● | ||||
| Drinking water system | ① | ● | ||||
| Microwave oven | ① | ● | ||||
| RV Special Large Refrigerator 66L | ● | - | ||||
| RV dedicated large refrigerator 148L | ① | ● | ||||
| External kitchen | External faucet | ● | ● | |||
| Sinking stove | ● | ● | ||||
| Diesel stove | ① | ● | ||||
| Waterway and bathroom system | 160L clean water tank | ● | ● | |||
| 50L gray water tank+manual drain valve (with extended water pipe) | ● | ● | ||||
| Gravity water inlet | ● | ● | ||||
| Electric water pumping function (12V power interface+external pump) | - | ● | ||||

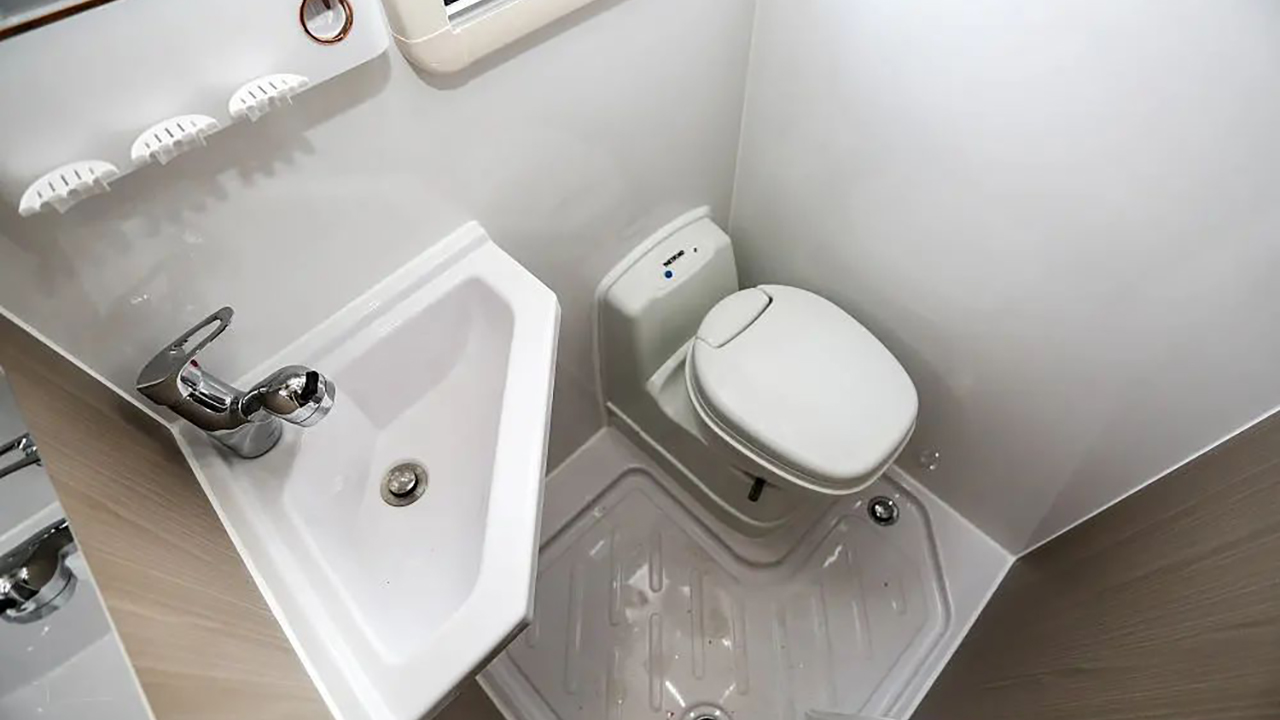

| Independent bathroom+plastic integrated wash basin+double drainage floor drain+shower shower+bathroom curtain | ● | ● | ||||
| Makeup mirror+clothes drying rod+hanging cabinet+mouthwash cup combination | - | ● | ||||
| Rotating toilet | ● | ● | ||||
| Optional upgrade package | Standard configuration | High configuration | ||||
| Life Comfort Package | 3kg washing machine, bathroom heating system, direct drinking water system, 148L RV dedicated refrigerator, microwave oven, diesel stove | ① | - | |||
| Electricity worry free package | 48V200Ah lithium battery+5KW reverse charging integrated machine (5KW inverter 3.3KW charger)+solar panel (800W) | ② | - | |||
| Water free package | 300L clean water tank+water tank heating+water tank cleaning | ③ | ③ | |||
| Exclusive customized package | Standard configuration | High configuration | ||||
| Body color customization | Military Green Metallic | ○ | ○ | |||
| Champagne Gold Metallic | ○ | ○ | ||||
| Scratch resistant frosting paint | ○ | ○ | ||||
| Car body color strip | ○ | ○ | ||||
| Two tone body | ○ | — | ||||
| Customer exclusive customization is acceptable | ○ | ○ | ||||
| Interior color customization | Option A: Bright and Elegant Colors | ○ | ○ | |||
| Option B: Latte | ○ | ○ | ||||
| Customer exclusive customization is acceptable | ○ | ○ | ||||
| Off road exclusive customization | A: Ladder+bicycle rack | ○ | ○ | |||
| B: mecha external storage compartment (1 unit)+Backpack spare tire+spare tire cover“ | ○ | ○ | ||||
| C: 1600W dual expansion solar panel | ○ | ○ | ||||
| 300L clean water tank | ○ | ○ | ||||
| notes | Off road customized packages A and B cannot be selected at the same time, will not be installed, and will be taken with the vehicle. | |||||
| Standard configuration● Optional ○ not have | ||||||
| The manufacturer has the right to make changes to the above parameters without prior notice. The execution time is from April 20, 2023. | ||||||
